The Introduction of symons cone crusher
Jaw crusher, the most popular crusher in traditional stone crushing plant, is always used in both primary and secondary crushing..
The Introduction of symons cone crusher
The crusher is an indispensable equipment in the crushing ore process, and the jaw crusher is especially important. After continuous innovation and process improvement, the jaw crusher has greatly improved its structure and technology. It has the advantages of simple structure, reliable operation, easy operation, convenient maintenance and low cost.
The jaw crusher is mainly used for medium-size crushing of various ores and bulk materials, and is widely used in mining, smelting, building materials, roads, railways, water conservancy and chemical industries. Stones such as quartz stone, bluestone, river pebble, cobblestone, limestone, iron ore can be processed and broken.
Performance advantages:
1, unique structure, high efficiency and energy saving
Deepen the "V-shaped" deep cavity, high efficiency and energy saving, no broken corners, uniform particle size
2, advanced manufacturing technology, excellent material selection
The equipment is manufactured using advanced manufacturing processes and highly wear-resistant materials to make the entire equipment durable.
3, the feed port is designed reasonably and has a large capacity
New tooth guard plate, the effective area of the jaw plate is increased, and the production capacity is large.
4, high operating efficiency, stable and reliable
The flywheel parameters are compactly designed to make the operation of the equipment more stable and reliable.
The Working prinpicle of symons cone crusher
working principle:

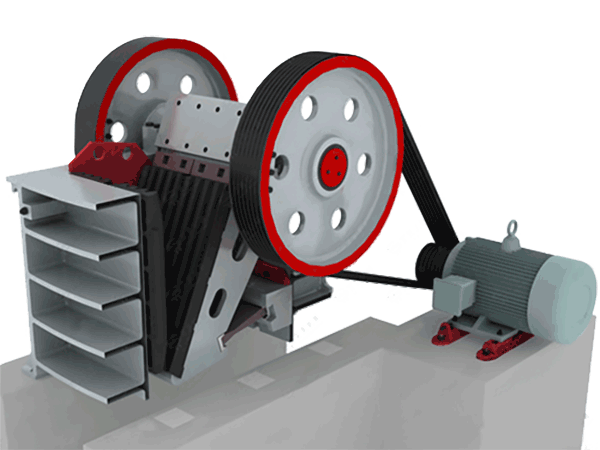

When the crusher is working, the electric motor drives the eccentric shaft to rotate through the pulley, so that the moving cymbal is periodically approached and left away from the fixed boring, so that the material has multiple crushing, squeezing, rolling, etc., so that the material becomes larger and smaller, and gradually falls until Discharged from the discharge opening to complete the crushing.
Model |
Feeding opening(mm) |
Max. feeding size (mm) |
Adjustable discharge opening (mm) |
Capacity (tph) |
Power (kW) |
Weight (t) |
PE-250x400 |
250x400 |
210 |
20-80 |
5--20 |
15 |
2.8 |
PE-400x600 |
400x600 |
340 |
40-100 |
16-60 |
30 |
7 |
PE-500x750 |
500x750 |
425 |
50-100 |
40-110 |
55 |
12 |
PE-600x900 |
600x900 |
500 |
65-160 |
90-180 |
55 |
17 |
PE-750x1060 |
750x1060 |
630 |
80-140 |
110-320 |
110 |
29 |
PE-900x1200 |
900x1200 |
750 |
95-165 |
220-450 |
110-132 |
58 |
PE-1200x1500 |
1200x1500 |
1020 |
150-300 |
400-800 |
160-220 |
100.9 |
PEX-150x750 |
150x750 |
120 |
18-48 |
8--25 |
15 |
3.5 |
PEX-250x1000 |
250x1000 |
210 |
25-60 |
16-52 |
30-37 |
6.5 |
PEX-250x1200 |
250x1200 |
210 |
25-60 |
20-61 |
37-45 |
8.52 |
PEX-300x1300 |
300x1300 |
250 |
20-90 |
10-65 |
75 |
13.5 |
