The Introduction of symons cone crusher
The impact crusher can process materials with a side length of not more than 500mm, and its compressive strength can reach up to 350 MPa, which has the advantages of large crushing ratio and cubic material after crushing..
The Introduction of symons cone crusher

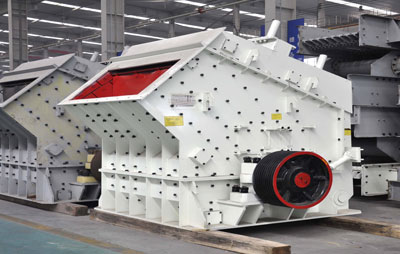

The impact crusher is called counter-shock, and uses the impact energy to crush medium-hard brittle materials. It is mainly divided into two categories: single-rotor counter-break and double-rotor counter-break. It has large crushing ratio, uniform product size and less powder phenomenon. The utility model has the advantages of low consumption, convenient maintenance, high energy and energy saving of hard rock crushing, large range of product particle size adjustment, adjustable size of discharge material, and simplified crushing process.
CFTC Impact Crusher has these advantages:
1. The finished product is beautiful and uniform in shape.
Excellent product size, freely adjustable backlash and plate hammer clearance, control finished particle size and grain size
2. High impact force and high crushing efficiency
Compact structure, very compact design, large rotor inertia
3. The crushing chamber has reasonable design and high production efficiency.
Energy-saving and high-yield, the crushing chamber is relatively large, the material of the material is large, the hardness is high, and the output is stable.
4. Excellent material selection and long service life
The accessories have long service life, stable operation, low crushing power, and the hammer is relatively wear-resistant. The entire equipment has a long service life.
The Working prinpicle of symons cone crusher
The impact crusher is a crushing machine that uses impact energy to break up materials. When the machine is working, the rotor rotates at a high speed under the driving of the motor. When the material enters the action area of the hammer, it collides with the hammer on the rotor, and then is thrown to the counter-attack device to break again, and then rebounds from the counter-attack. Returning to the hammer action zone, the process is repeated. The process is repeated from large to small, and the first, second and third counter-attack chambers are repeatedly crushed until the material is crushed to the required particle size. The stone is discharged from the discharge port directly from the upper part of the machine. Falling into a high-speed rotating turntable; under the action of high-speed centrifugal force, another part of the flying stone that is shunted around the turntable in the form of an umbrella produces high-speed collision and high-density crushing. After the stones hit each other, they will be in the turntable and the casing. The vortex motion is formed between them to cause multiple blows and smashes.
Model |
Specification (mm) |
Feed opening (mm) |
Max. feeding size (mm) |
Capacity (tph) |
Power (kW) |
Weight (t) |
PF-1007 |
Φ1000×700 |
400X730 |
250 |
20-70 |
37-55 |
9 |
PF-1010 |
Φ1000X1050 |
400X1080 |
300 |
50-90 |
55-75 |
15 |
PF-1210 |
Φ1250X105 |
400X1080 |
300 |
70-130 |
110 |
17 |
PF-1214 |
Φ1250X1400 |
400X1430 |
300 |
100-180 |
132 |
22 |
PF-1315 |
Φ1320X1500 |
860X1520 |
350 |
130-250 |
200 |
26 |
PF-1520 |
Φ1500X2000 |
960X2020 |
700 |
300-500 |
400-440 |
45 |
PF-1820 |
Φ1800X2000 |
1600X2020 |
700 |
500-700 |
630-710 |
65 |
