The Introduction of symons cone crusher
Mobile jaw crusher station is a new type of crushing equipment, which expands the concept field of coarse crusher and fine crushering, it can suppy the customers the best crushing and screening solutions. .
The Introduction of symons cone crusher

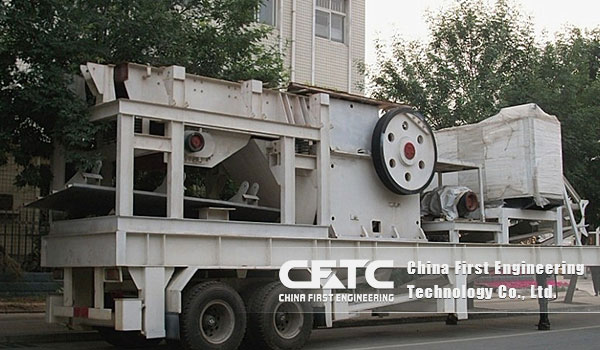

Mobile jaw crusher station is a new type of crushing equipment, which expands the concept field of coarse crusher and fine crushering, it can suppy the customers the best crushing and screening solutions. Considering from the customers' standpoint, efficiently integrates the feeding equipment, crushing equipment, screening equipment, effectively solving the sit constraints of the fixed crushing plants. It not only avoids the site infrastructure, but also expands the material stack space due to the compact equipment layout. Mobile crushing plant has the obvious advantages of crushing while moving, this can provide a whole new operation mode that greatly decreases the operation cost.
Mobile crushing plant is widely used in the road and bridge construction, urban construction, metallurgy, energy and other crushing and screening industries.
The mobile crushing plant mainly includes: mobile impact crushing plant, mobile cone crushing plant,mobile jaw crushing plant, mobile VSI crushing plant and mobile screening plant. It also can be divided into track mounted crushing plant and wheel mounted crushing plant in terms of driving mode.
Advantages:
1,Flexible structure and diversification.
2,Reducing the material transport costs.
3,Adaptive on-demand.
4,Reliable performance and convenient repair.
The Working prinpicle of symons cone crusher

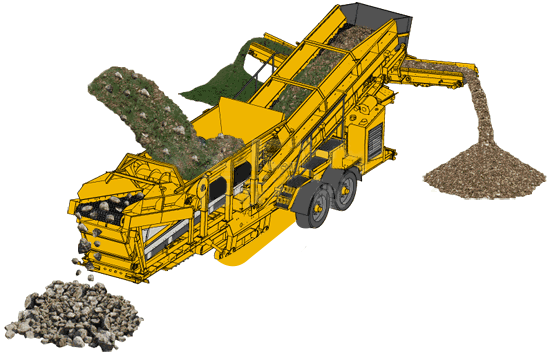

The main crushing equipment of the mobile crushing station can be equipped with a jaw crusher, a counter crusher and a cone crusher. The material is evenly conveyed into the crusher through the feeder. After being crushed by the crusher, the circular vibrating screen constitutes a closed circuit system. The material is recycled and broken, and the material that meets the particle size requirements is output by the conveyor to achieve the production purpose. The mobile crushing station can also remove the circular vibrating screen according to the actual production needs, and directly crush the material, and then carry out specific operations with other crushing equipment, which is convenient and flexible.
【Jaw crusher series】:
model |
LTE-69 |
LTE-710 |
LTE-912 |
LTJ-811 |
Feeder model |
ZSW-380×96 |
ZSW-420×110 |
ZSW-490×130 |
ZSW-490×130 |
PE broken model |
PE-600×900 |
PE-750×1060 |
PE-900×1200 |
JC-840×1100 |
Main belt conveyor model |
B800×8.5M |
B1000×9M |
B1200×9.5M |
B1200×9.5M |
Side belt conveyor model (optional) |
B450×3M |
B500×3.5M |
B650×4M |
B650×4M |
Maximum feed (mm) |
480 |
630 |
750 |
720 |
Outlet adjustment range(mm) |
65-160 |
80-140 |
95-165 |
100-225 |
Production capacity(t/h) |
90-180 |
110-320 |
220-450 |
200-500 |
Motor Power(kw) |
180 |
220 |
250 |
270 |
Shipping size(L×W×H)(mm) |
11900×2550×3650 |
13100×2550×4450 |
14600×2950×4500 |
14600×2550×4500 |
biggest size(L×W×H)(mm) |
12100×2900×4060 |
13300×2950×4810 |
14600×3300×5300 |
14600×3300×5300 |
Iron remover (optional) |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-12 |
RCYD(C)-12 |
Tire configuration |
And installed double axis C |
And installed three-axis C |
And installed four-axis C |
And installed four-axis C |
【Impact crusher series】:
model |
LTF-1210 |
LTF-1214 |
LTFW-1214 |
LTFW-1315 |
LTFW-1315 |
Feeder model |
ZSW-380×96 |
ZSW-380×96 |
ZSW-380×96 |
ZSW-420×110 |
ZSW-420×110 |
Counterattack broken model |
PF-1210 |
PF-1214 |
PEW-1214S |
PF-1315 |
PFW-1315S |
Main belt conveyor model |
B800×8.5M |
B800×8.5M |
B800×8.5M |
B1000×9.M |
B1000×9.M |
Side belt conveyor model (optional) |
B450×3.2M |
B450×3.2M |
B450×3.2M |
B500×3.5M |
B500×3.5M |
Maximum feed(mm) |
300 |
300 |
500 |
350 |
600 |
Production capacity(t/h) |
70-130 |
90-180 |
130-200 |
120-250 |
180-320 |
Motor Power(kw) |
220 |
270 |
270 |
350 |
330 |
Shipping size(L×W×H)(mm) |
11900×2550×3900 |
11900×2600×3900 |
11900×2550×3650 |
13100×2900×4450 |
13100×2800×4150 |
biggest size(L×W×H)(mm) |
12100×2900×4310 |
12100×2950×4310 |
12100×2950×4310 |
13300×2950×4810 |
13300×2950×4810 |
Iron remover (optional) |
RCYD(C)-8 |
RCYD(C)-8 |
RCYD(C)-8 |
RCYD(C)-10 |
RCYD(C)-10 |
Tire configuration |
And installed double axis C |
And installed double axis C |
And installed double axis C |
And installed double axis C |
And installed double axis C |
