The Introduction of symons cone crusher
The limestone hammer crusher produced by our company is a new type of high-efficiency and energy-saving crushing equipment. It is widely used in building materials, metallurgy, mining, chemical, electric power and other industries. .
The Introduction of symons cone crusher
Limestone is used in construction materials and industrial raw materials after being processed by crushing and milling. Among them, a limestone hammer crusher can be used for the crushing of limestone. The limestone hammer crusher produced by our company is a new type of high-efficiency and energy-saving crushing equipment. It is widely used in building materials, metallurgy, mining, chemical, electric power and other industries. The device has the advantages of less investment, quick effect, small size, light weight, small floor space, simple structure and easy maintenance. The product size can be adjusted according to customer requirements to meet different needs.
Product performance characteristics
The limestone hammer crusher has the advantages of compact structure, convenient installation, reasonable layout, simple operation and good maintainability. It is easy to operate, especially for limestone crushing and processing, and has excellent adaptability to cement production process layout; Light weight, small size, saving process layout space; with special structural features, easy operation and maintenance, and the 'big break ratio' of material crushing.
The Working prinpicle of symons cone crusher
Introduction to the working part of limestone hammer crusher

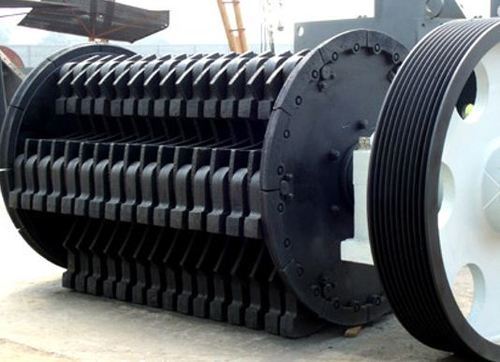

The working part of the limestone hammer crusher is mainly composed of a main shaft, a hammer plate, a hammer head, a lining plate and a counterattack plate.
The main shaft is the main component supporting the rotor, and it bears the weight and impact force of the rotor and the hammer. Therefore, the main shaft is cast from high-quality alloy steel with high toughness and strength;
The hammer plate is used to suspend the hammer head, because the hammer disc will be impacted and rubbed by the material when the equipment is running, so the hammer disc should have a certain wear resistance;
Hammer head is a more important working part. It is mainly responsible for the beating and impact of materials. The quality, shape and material of the hammer determine the production capacity of the limestone hammer crusher. Therefore, the hammerhead adopts a new type of high quality multi-element high chromium manganese. Steel composite casting, strong wear resistance, impact resistance, long service life;
The lining plate prevents wear of the frame, and the counter plate also has wear resistance and impact resistance. The material properties of the individual components determine the quality and service life of the limestone hammer crusher.
The limestone hammer crusher mainly relies on the high-speed rotating hammer head and the material to produce a strong impact to complete the material crushing process. When the equipment is running, the material falls freely into the crushing chamber through the feeding device. The high-speed rotating hammer and the material are violently impacted and broken into small pieces. The material hits the hammer and is rebounded into the body. Broken, or rebounded onto the sieve bar, the material smaller than the gap of the sieve bar is discharged, and the larger material continues to remain in the crushing cavity and is again crushed and broken by the hammer head rotating at a high speed. At the same time, the high-speed moving materials will also have a collision and crushing effect. After the final material passes through a variety of multiple crushing passes, it is discharged from the discharge opening, and the material is crushed to achieve the required grain size.
type |
capacity(m³/h)
|
power (kw) |
PCΦ400×300 |
5-10 |
4P 11KW |
PCΦ600×400 |
10-22 |
4P 22KW |
PCΦ800×600 |
18-40 |
6P 55KW |
PCΦ1000×800 |
25-50 |
8P 75KW |
PCΦ1000×1000 |
30-55 |
8P 90KW |
