The Introduction of symons cone crusher
The gold ore jaw crusher is the leader of the crushing industry and has many outstanding features such as large crushing ratio, high output, stable operation and reliability..
The Introduction of symons cone crusher

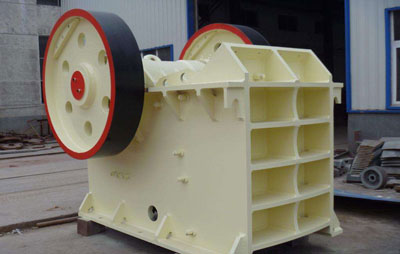

The gold ore jaw crusher is the leader of the crushing industry and has many outstanding features such as large crushing ratio, high output, stable operation and reliability. Let's take a look at the detailed technical parameters of the gold ore jaw crusher.
1. Feed port size, 150-1800mm. The inlet size is the adjustment range of the gold ore jaw crusher, and the size is adjusted to 1800mm. Under normal circumstances, do not arbitrarily adjust.
2. Feed particle size, 125-1200mm. It refers to the feed size of gold ore jaw crusher at 1200mm. Therefore, when the equipment is crushing gold ore, it cannot exceed the tolerance of the equipment.
3. Discharge port adjustment range: 10-400mm. The discharge port refers to the area where the gold ore is broken and discharged. The adjustment range is 400mm. It also reflects the fact that if there is a broken gold ore larger than 400mm, it will not be discharged, and the product is also inconsistent.
4. Processing capacity 1-65 / h. Processing power is a point that each user valued in buying a gold ore jaw crusher. The greater the production capacity, the more popular. Here we can see that the processing capacity of the equipment is 65 tons per hour. Overall, the processing of services is very large.
5. Eccentric shaft speed: 250-330r/min. The eccentric shaft is an accessory of the gold ore jaw crusher, and the higher the rotation, the smoother operation and higher performance of the equipment.
6. Motor power: 5.5-380kw. The electric motor is an important part of the opening of the gold ore jaw crusher, and the higher its power, the faster it drives.
7. Total weight, 0.8-150.6 tons. It is the total weight of the gold ore jaw crusher. When the customer purchases, the equipment will be weighed on site, the weight will be lifted, and the higher the steel content, the higher the wear resistance.
The Working prinpicle of symons cone crusher
working principle:
When the crusher is working, the electric motor drives the eccentric shaft to rotate through the pulley, so that the moving cymbal is periodically approached and left away from the fixed boring, so that the material has multiple crushing, squeezing, rolling, etc., so that the material becomes larger and smaller, and gradually falls until Discharged from the discharge opening to complete the crushing.
Model |
Feeding opening(mm) |
Max. feeding size (mm) |
Adjustable discharge opening (mm) |
Capacity (tph) |
Power (kW) |
Weight (t) |
PE-250x400 |
250x400 |
210 |
20-80 |
1--20 |
15 |
2.8 |
PE-400x600 |
400x600 |
340 |
40-100 |
16-60 |
30 |
7 |
PE-500x750 |
500x750 |
425 |
50-100 |
40-110 |
55 |
12 |
PE-600x900 |
600x900 |
500 |
65-160 |
90-180 |
55 |
17 |
PE-750x1060 |
750x1060 |
630 |
80-140 |
110-320 |
110 |
29 |
PE-900x1200 |
900x1200 |
750 |
95-165 |
220-450 |
110-132 |
58 |
PE-1200x1500 |
1200x1500 |
1020 |
150-300 |
400-800 |
160-220 |
100.9 |
PEX-150x750 |
150x750 |
120 |
18-48 |
8--25 |
15 |
3.5 |
PEX-250x1000 |
250x1000 |
210 |
25-60 |
16-52 |
30-37 |
6.5 |
PEX-250x1200 |
250x1200 |
210 |
25-60 |
20-61 |
37-45 |
8.52 |
PEX-300x1300 |
300x1300 |
250 |
20-90 |
10-65 |
75 |
13.5 |
