The Introduction of symons cone crusher
The mobile hammer crusher is suitable for the machinery of manual sand making plant, high-grade road, railway, water conservancy, airport, construction, glass industry, cement, refractory, metallurgical and other industries..
The Introduction of symons cone crusher
The mobile hammer crusher is suitable for the machinery of manual sand making plant, high-grade road, railway, water conservancy, airport, construction, glass industry, cement, refractory, metallurgical and other industries.
Equipment advantage editing:
1. The equipment is very good for construction waste, building waste, brick, cans, coal, salt, cement clinker, coal gangue, shale, limestone, bluestone, weathering stone, slag and various medium and low hardness ores. The broken effect.
2. Novel design, stable and reliable operation, compact structure, less wearing parts, convenient maintenance, small size and easy replacement of parts. It is easy to move and can break the material anytime and anywhere.
3. The process is simplified, the structure is simple, the third-stage crushing is changed into two-stage crushing, the production capacity is large, and the environment is energy-saving.
4 According to customer requirements, adjust the required particle size, the hammer head is cast by new technology, wear and impact resistance. .
5 The finished material is cuboidal and has strong pressure resistance. It is suitable for high-standard building needs. The finished product has a particle size of 5mm and accounts for more than 85%.
6 The structure of the body is sealed, which solves the dust pollution of the crushing workshop and the problem of leakage of the body.
7. Maintenance and power saving costs are 50%-70% lower than ordinary crushers.
The Working prinpicle of symons cone crusher

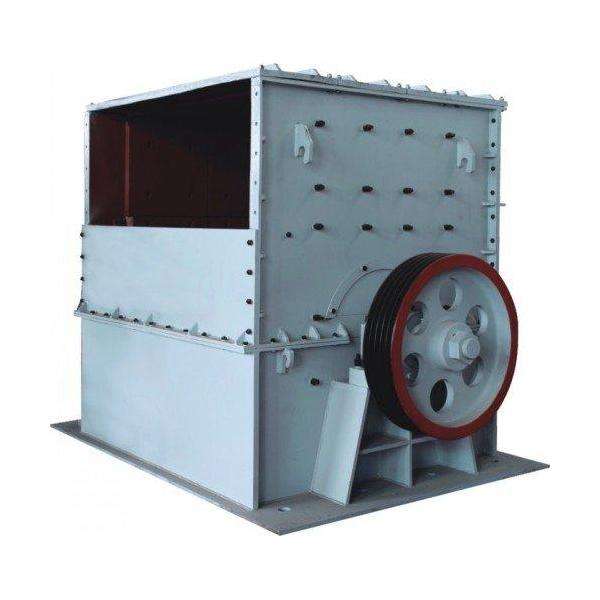

Working principle of mobile hammer crusher:
The main working component is a rotor with a hammer. The rotor consists of a main shaft, a disc, a pin and a hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feed port, and is crushed by the impact, impact, shearing and grinding action of the high-speed moving hammer. In the lower part of the rotor, a sieve plate is arranged, and the size of the pulverized material smaller than the mesh size is discharged through the sieve plate, and the coarse-grained grade larger than the mesh size is retained on the sieve plate and continues to be struck and ground by the hammer, and finally passed through the sieve plate. Exhausted from the machine. If you need to change the production of the venue, you can enable the mobile device to transfer equipment at any time to facilitate re-production.
Type |
Model |
input(mm) |
output(mm) |
capacity(m3/h) |
power(kw) |
weight(t) |
Mobile hammer crusher |
400×300 |
≤200 |
≤25 |
5-10 |
4 |
7.5 |
0.8 |
600×400 |
≤250 |
≤30 |
10-22 |
4 |
11 |
1.5 |
800×600 |
≤250 |
≤30 |
18-40 |
4 |
22 |
3.2 |
1000×800 |
≤350 |
≤35 |
25-50 |
4 |
55 |
4.3 |
1000×1000 |
≤300 |
≤35 |
30-55 |
6 |
110 |
8 |
1250×1250 |
≤350 |
≤35 |
35-65 |
6 |
180 |
14 |
1400×1400 |
≤350 |
≤35 |
50-100 |
6 |
280 |
32 |
1600×1600 |
≤350 |
≤35 |
100-150 |
8 |
480 |
37.5 |
