The Introduction of symons cone crusher

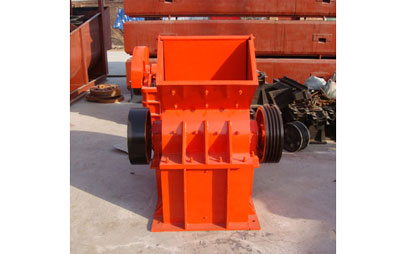

The Elecon hammer crusher is a section of crushing crusher that directly crushes materials with a particle size of 600-1800 mm to 25 or less. Hammer crusher is suitable for crushing medium-hard materials such as limestone, slag, coke, coal and other materials in cement, chemical, electric power, metallurgical and other industrial sectors..
The Introduction of symons cone crusher
The Elecon hammer crusher is a section of crushing crusher that directly crushes materials with a particle size of 600-1800 mm to 25 or less. Hammer crusher is suitable for crushing medium-hard materials such as limestone, slag, coke, coal and other materials in cement, chemical, electric power, metallurgical and other industrial sectors.
Product advantages
1, strong applicability
The crushing ratio is large, the production efficiency is high, the applicability is strong, and the required particle size can be adjusted according to customer requirements.
2, efficient and environmentally friendly
There is no screen mesh bottom, there is no requirement for the moisture content of the material, there is no problem of blocking the sieve plate, and there is no problem that the material can not be discharged in time and repeated pulverization; the hammer structure is sealed to solve the dust pollution and the body of the crushing workshop. Leakage problem.
3, the structure is simple
The overall design is beautiful, compact, with less wearing parts and convenient maintenance. It is an upgraded product.
4, advanced technology
The bearing boxes are all made of cast steel and fixed with four screws, which is scientific and practical. The working hammer is cast by new technology and has wear resistance and impact resistance.
The Working prinpicle of symons cone crusher
working principle

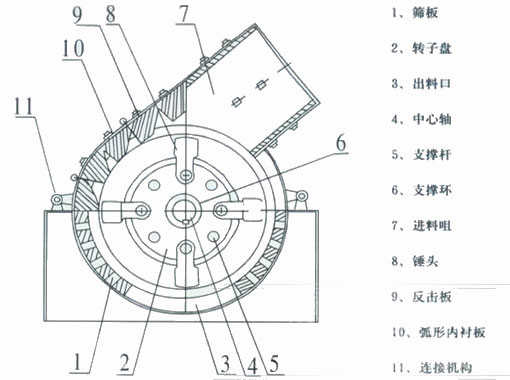

The hammer crusher is mainly composed of a casing, a rotor, a bearing iron and a purlin. The casing is divided into two parts, the steel plate is welded and welded, and the other parts are bolted together. The inside of the casing is lined with a high-manganese steel liner that can be replaced after wear. An hammer with a regularly distributed array is mounted on the main shaft of the hammer crusher, and a rotor is formed with the turntable and the hammer shaft.
The motor is driven by a motor or a V-belt to rotate the rotor, and the centrifugal force generated by the rotation of the hammer is extended to the periphery. After the bulk material enters the crushing chamber from the inlet, it is crushed by a high-speed moving hammer. The crushed qualified material is discharged by the purlin with a gap at the lower part, and the unqualified one is left in the crushing chamber, and is repeatedly acted upon by the hammer and the striking iron block until it can be discharged.
Model |
Feeding Size (mm) |
Output Size (mm) |
Capacity (m³/h) |
Motor Power(KW) |
Weight (t) |
size(mm) |
PCΦ400×300 |
≤200 |
≤25 |
5-10 |
11 |
0.8 |
900*670*860 |
PCΦ600×400 |
≤250 |
≤30 |
10-22 |
22 |
2.26 |
1200*1050*1200 |
PCΦ800×600 |
≤250 |
≤35 |
18-40 |
55 |
4.8 |
1310*1180*1310 |
PCΦ1000×800 |
≤350 |
≤35 |
25-50 |
75 |
5.9 |
1600*1390*1575 |
PCΦ1000×1000 |
≤350 |
≤35 |
30-55 |
90 |
8 |
1800*1590*1775 |
PCΦ1250×1250 |
≤350 |
≤35 |
35-65 |
132 |
14 |
2060*1600*1890 |
PCΦ1400×1400 |
≤350 |
≤35 |
50-100 |
280 |
32 |
2365*1870*2220 |
PCΦ1600×1600 |
≤350 |
≤35 |
100-150 |
480 |
37.5 |
3050*2850*2800 |
